Customized Heavy Duty Arch Rubber Fender 500H PIANC Standard Marine Dock
Description

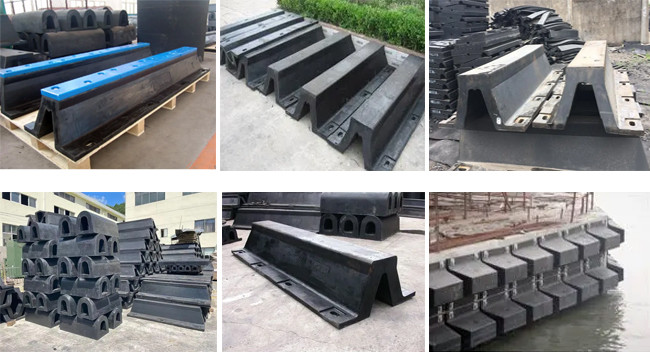

Arch Fender is particularly useful for vessels with high allowable hull pressures and for locations where mounting space is limited. A variety of sizes and lengths are offered. Additionally arch fenders can be supplied with bolted or bonded UHMW facings.
The regular Arch Fender has a rubber contact face ideal for all general purpose applications. The higher friction of the rubber surface can be used to good effect to dampen the movements between vessel and wharf in sea swells and similar conditions.
Specifications
| Item | Customized Heavy Duty Arch Rubber Fender 500H PIANC Standard Marine Dock |
| Material | SBR, NR |
| Size Available | Height: 200-1000mm; Length: 1000-3500mm |
| Tensile Strength | => 16 MPA |
| Density | 90+/-5 |
| Colour | Black |
| Application | Multi-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge |
| Hardness | 40-70 Shore A |
| Elongation | => 400 |
| Tear Strength | => 400 N/cm |
| Breaking Strength | >310 |
| Chemical Resistance | Fuel A: No deterioration |
| Oil 3: No deterioration |
| Lubricating oil: No deterioration |
| Cutting oil: No deterioration |
| Dilute HCL: No deterioration |

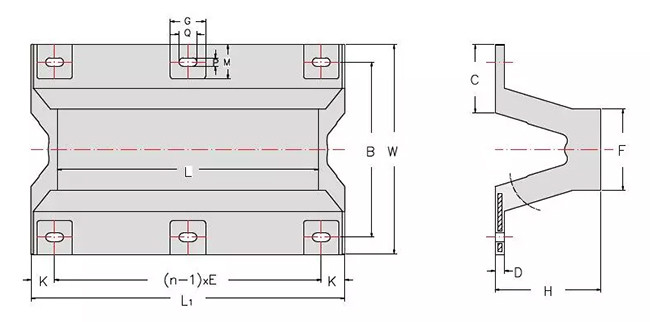

| Model | W | B | F | C | H |
| [mm] | [mm] | [mm] | [mm] | [mm] |
| DF-V200H | 400 | 320 | 145 | 128 | 200 |
| DF-V250H | 500 | 410 | 175 | 160 | 250 |
| DF-V300H | 600 | 490 | 225 | 196 | 300 |
| DF-V400H | 800 | 670 | 300 | 260 | 400 |
| DF-V500H | 1000 | 840 | 375 | 325 | 500 |
| DF-V600H | 1200 | 1010 | 450 | 390 | 600 |
| DF-V800H | 1600 | 1340 | 600 | 520 | 800 |
| DF-V1000H | 2000 | 1680 | 750 | 650 | 1000 |
Features
1. Rugged single piece moulding for long service life
2. Strong bolting arrangement is easy and quick to install
3 Excellent shear resistance means shear chains rarely needed
4. Large range of sizes, lengths and Energy Indices
Applications
● Ferry & RoRo Terminals
● Barge Tug Berths
● General Cargo
● Multi-purpose Terminals
Material of main accessories
1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
2. Washer: Q235 hot-dip galvanised.
3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
4. Foot rod and board: Q235
Inspection and certificate
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test
- Energy absorption and reaction test
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
Packing and delivery
Advantage: professional, efficient, economical and environmental.
Due to our products are large size and heaviness, normal we do not use packaging during shipping in order to reduce costs. So the professional packing skills are crucial, not only it need to protect our products, but also need to protect the containers, vehicles and personnel. Our core strength comes from years of work experience and a responsible attitude.
